Heat Treatment Furnace Parts Castings: Enhancing Durability and Efficiency in Industrial Applications

1. Introduction to Heat Treatment Furnaces and Their Parts
Heat treatment is a vital process in many industries, where materials, especially metals, are subjected to controlled heating and cooling cycles to alter their physical and mechanical properties. Heat treatment furnaces are specialized equipment that provides the necessary thermal environment for processes like annealing, quenching, tempering, and hardening. To withstand the extreme temperatures and demanding conditions in these applications, heat treatment furnaces require robust and durable parts. Castings are one of the most reliable manufacturing techniques for producing these parts, offering excellent heat resistance, structural integrity, and longevity.

2. Importance of Castings in Heat Treatment Furnaces
2.1 Durability in High-Temperature Environments
The materials used in heat treatment furnace parts must resist high temperatures without deforming or degrading. Castings, especially those made from high-quality alloys, are designed to endure thermal cycling while maintaining structural integrity. This durability is critical for minimizing downtime and ensuring consistent, safe operation.

2.2 Customization and Flexibility in Design
Casting processes allow for intricate and complex shapes that would be challenging to achieve through other manufacturing methods. This flexibility enables engineers to design furnace parts tailored to specific requirements, such as different furnace sizes, operating temperatures, and thermal transfer needs. Whether it’s creating intricate channels for efficient heating or reinforcing specific sections for added strength, castings provide a customized solution for varied furnace designs.

2.3 Cost-Effectiveness
Casting processes, especially when used for mass production, offer an economical solution for producing high-quality furnace parts. By investing in high-grade casting materials, companies can extend the service life of furnace components, thereby reducing long-term maintenance and replacement costs.

3. Types of Heat Treatment Furnace Parts Produced via Casting
3.1 Furnace Linings and Refractory Parts
Furnace linings and refractories act as insulation, containing heat and protecting the furnace structure from direct exposure to flames and high temperatures. Cast refractory parts, typically made from high-grade ceramics or heat-resistant alloys, provide excellent thermal stability and resistance to thermal shock, essential in high-heat environments.

3.2 Heat-Resistant Fixtures and Supports
Fixtures and supports hold materials in place within the furnace, ensuring even exposure to heat. Castings for these components are often made from alloys with high chromium and nickel content, enhancing resistance to oxidation and heat-induced deformation.

3.3 Hearths, Grates, and Trays
Hearths, grates, and trays are crucial for handling materials inside the furnace. They are often exposed to heavy loads and require a casting process that guarantees both strength and resistance to temperature fluctuations. Heat-resistant cast iron and steel alloys are commonly used for these components to withstand continuous high-temperature exposure.

3.4 Burners and Burner Blocks
Burners and their supporting structures are essential for maintaining consistent heat. Cast burner parts are made from alloys that resist corrosion, oxidation, and thermal stress, ensuring efficient and stable heat distribution.

4. Materials Commonly Used in Heat Treatment Furnace Castings
4.1 High-Chromium Alloys
Alloys with high chromium content offer excellent resistance to oxidation and corrosion, making them ideal for furnace parts exposed to direct flames or high oxygen environments.

4.2 Nickel-Based Alloys
Nickel alloys provide exceptional heat resistance and thermal stability, even at extreme temperatures. They are commonly used in fixtures, supports, and other structural components that must endure prolonged heat exposure.

4.3 Cast Iron and Cast Steel
These materials offer excellent wear resistance and strength, making them ideal for parts subjected to mechanical stress. Advanced grades of cast iron and steel can also withstand temperature variations, making them suitable for furnace hearths, grates, and structural frames.

5. Benefits of Quality Castings in Heat Treatment Furnaces
5.1 Improved Operational Efficiency
High-quality cast furnace parts ensure that heat treatment processes are efficient and consistent. Quality castings reduce the likelihood of component failures that could interrupt furnace operation, thereby ensuring a smoother production process and minimizing energy waste.

5.2 Enhanced Safety
Durable, well-designed furnace components reduce the risk of malfunction, ensuring that furnace operators and nearby personnel remain safe. Casting processes enable precise control over material composition and structure, leading to parts that can reliably handle the demands of high-temperature environments without posing safety risks.

5.3 Reduced Maintenance Costs
With proper casting materials and techniques, furnace parts can achieve longer operational lifespans. This durability translates to lower maintenance and replacement costs, providing significant cost savings for companies that rely on continuous furnace operation.

6. Advances in Casting Technologies for Furnace Parts
Modern casting methods, such as investment casting and centrifugal casting, have enabled manufacturers to produce furnace parts with improved precision and material quality. Investment casting, in particular, allows for the creation of complex parts with tight tolerances, which is beneficial for achieving efficient furnace operation. Furthermore, advances in alloy development have led to materials with better heat resistance and mechanical properties, expanding the options available for custom furnace component design.

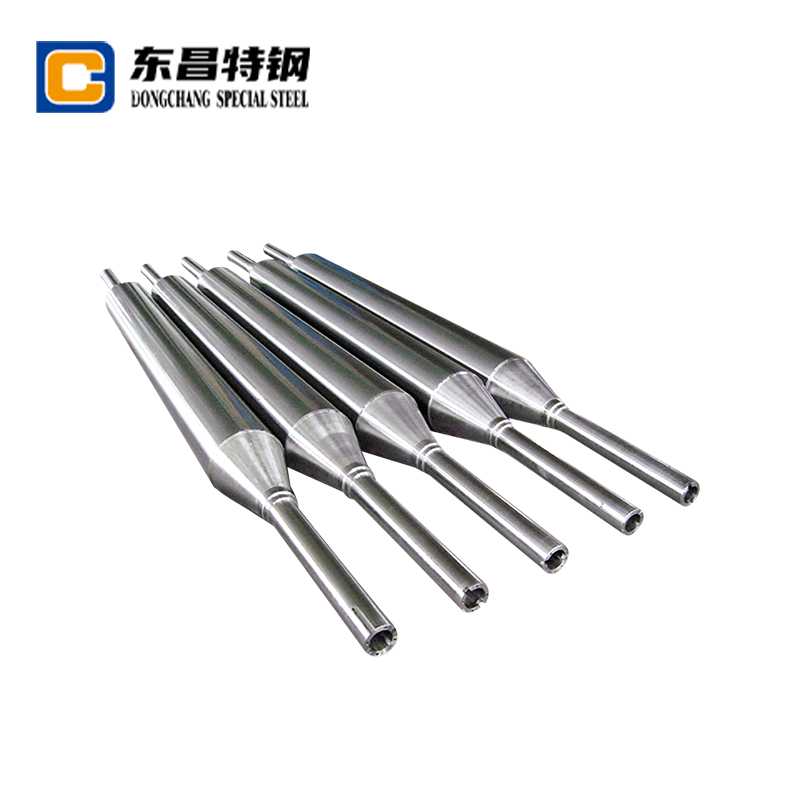

Heat Resistant Steel Furnace Rollers Castings
