Choosing the right heat treatment temperature and holding time is critical to the performance of cement plant grate castings, especially in scenarios where hardness and toughness need to be balanced to avoid high-temperature brittle fracture. Here are some key steps and suggestions to help optimize the heat treatment process:

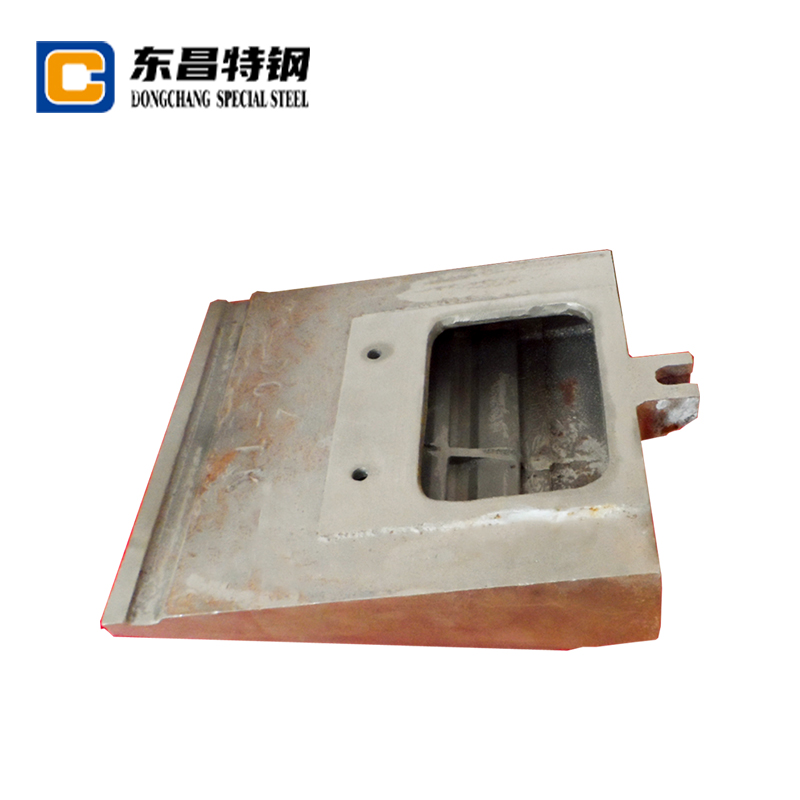

Heat Treatment Casting Grate Plate Castings
1. Determine material composition and performance requirements
Material composition: Grate castings are usually made of high-chromium cast iron, high-manganese steel or other wear-resistant alloy steels. The chemical composition of the material directly affects the performance after heat treatment, so it is necessary to select the right material according to the actual working conditions.
Performance requirements: Clarify the hardness, toughness and wear resistance requirements that grate castings need to achieve during use. For example, hardness should be sufficient to resist material wear, while toughness needs to prevent brittle fracture under high temperature and impact loads.
2. Choose the right heat treatment process
The heat treatment process mainly includes quenching and tempering. Quenching is used to increase hardness, and tempering is used to adjust toughness and reduce residual stress.
(1) Selection of quenching temperature
Heating temperature: Quenching temperature is usually determined according to the critical point of the material (such as Ac1, Ac3). For high chromium cast iron, the quenching temperature is generally 900℃~1050℃; for high manganese steel, the quenching temperature may be 1000℃~1100℃.
Hot holding time: The hot holding time needs to be long enough to ensure uniform temperature inside the casting and avoid thermal stress caused by excessive temperature gradient. The general hot holding time is 1~3 hours, and the specific time depends on the thickness and shape of the casting.
(2) Selection of tempering temperature
Tempering temperature: The selection of tempering temperature is the key to balancing hardness and toughness. Generally speaking:
Low-temperature tempering (150℃~300℃): obtains higher hardness but lower toughness, suitable for light load conditions.
Medium-temperature tempering (350℃~500℃): moderate hardness and good toughness, suitable for medium load conditions.
High-temperature tempering (550℃~700℃): lower hardness but high toughness, suitable for high impact load conditions.
Holding time: The tempering holding time is usually 2 to 6 hours, and the specific time needs to be determined according to the casting size and tempering temperature.
3. Experimental verification and simulation analysis
Experimental verification: Through small-batch trial production, the castings under different heat treatment parameters are tested for performance (such as hardness test, impact toughness test, metallographic analysis, etc.) to determine the optimal process parameters.
Simulation analysis: Use heat treatment simulation software (such as finite element analysis) to predict the microstructure and residual stress distribution under different process parameters and optimize the heating and cooling curves.
4. Consider actual working conditions
High temperature environment: Cement plant grate castings usually work in high temperature environments, so it is necessary to consider the high temperature performance after heat treatment. For example, high temperature tempering can improve the thermal fatigue resistance of castings.
Impact load: Grate castings may be impacted by materials during use, so it is necessary to improve their toughness through appropriate tempering processes to avoid brittle fracture.
5. Optimize cooling method
Quenching cooling: The quenching cooling rate has a significant effect on hardness and residual stress. Water cooling, oil cooling or air cooling can be selected, and the specific method needs to be determined according to the material and casting size. For example, high manganese steel is usually water-cooled, while high chromium cast iron may be more suitable for oil cooling.
Tempering cooling: Air cooling or furnace cooling is usually used after tempering to reduce residual stress.
6. Quality inspection and feedback
Non-destructive testing: Check the internal defects of castings through non-destructive testing technologies such as ultrasonic testing and X-ray testing.
Performance testing: Regularly perform hardness testing, impact toughness testing and metallographic analysis on heat-treated castings to ensure that their performance meets the requirements.
Feedback adjustment: Adjust heat treatment parameters according to the test results and optimize the process.
